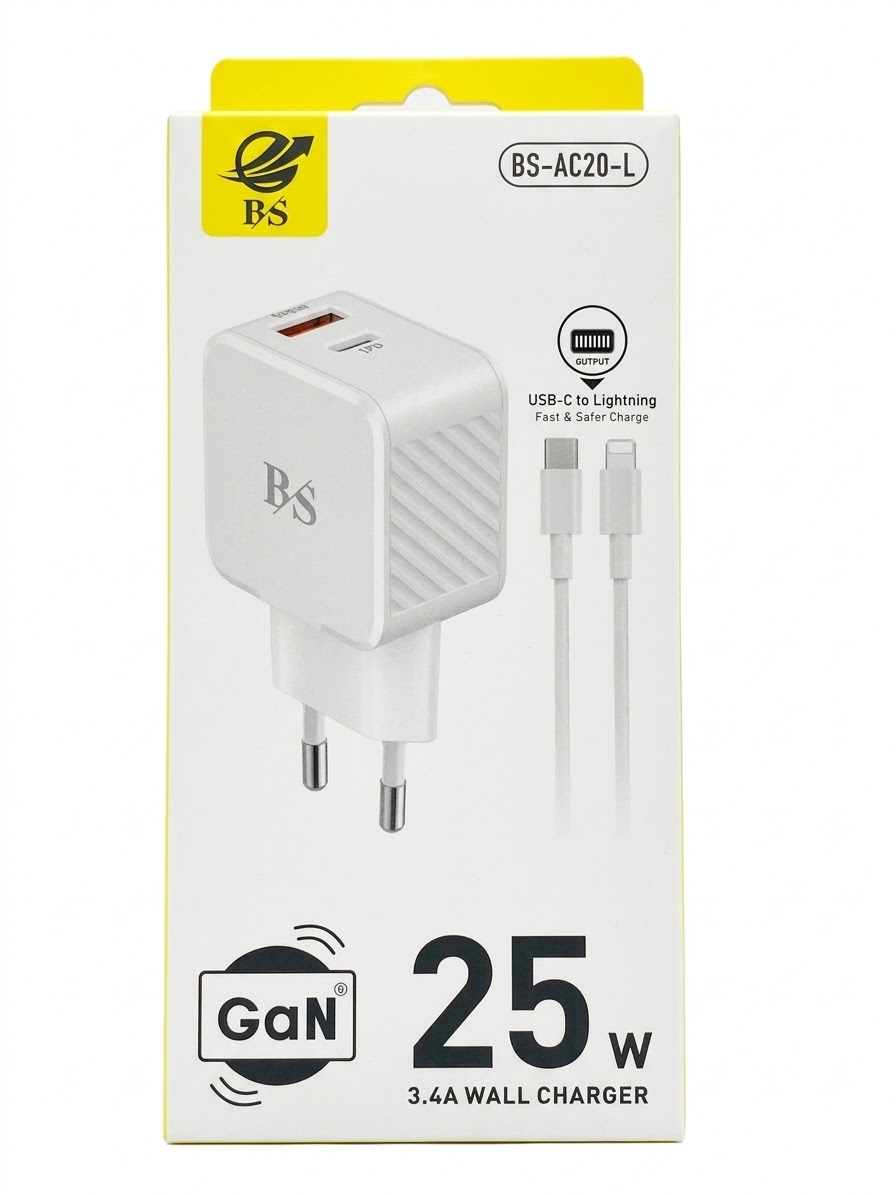

BS 25W Wall Charger with USB-C to Lightning Cable (BS-AC20-L) – Fast Charging Adapter

The BS 25W Wall Charger is a compact dual-port charging solution designed to provide fast and efficient power for compatible smartphones, tablets, handheld consoles and other USB-powered electronics. Model BS-AC20-L combines GaN (Gallium Nitride) technology, a premium smart chip and two charging ports in one convenient wall adapter.

The charger delivers up to 25W maximum power output and includes a USB-C to Lightning high-speed charging cable, making it a practical charging set for compatible Lightning devices. Its combination of USB-C Power Delivery and USB-A Quick Charge technology also provides flexibility when charging different devices.

25W Power Delivery Fast Charging

The BS 25W Wall Charger features a USB-C port supporting Power Delivery (PD) up to 25W. The USB-C output supports the following listed profiles:

• 5.0V⎓3.4A
• 9.0V⎓2.77A
• 12.0V⎓2.08A

The charger also supports PPS output, with listed profiles of 3.3V–5.9V⎓3.0A and 3.3V–11.0V⎓1.8A.

Actual charging speed depends on the connected device, its charging protocol, battery condition, cable and other factors. A compatible device is required to take advantage of the relevant fast-charging technology.

Dual USB-A and USB-C Ports

One of the key advantages of the BS 25W Wall Charger is its dual-port configuration. It includes both a USB-A port with QC3.0 support and a USB-C port with PD 25W support.

The USB-A QC3.0 output provides the following listed profiles:

• 5.0V⎓3.4A
• 9.0V⎓2.0A
• 12.0V⎓1.5A

This dual-port design allows the charger to accommodate different cable types and compatible devices. When both USB-A and USB-C ports are used simultaneously, the combined output is specified as 5.0V⎓3.4A maximum.

GaN Technology in a Compact Design

The BS-AC20-L uses GaN (Gallium Nitride) technology, a charging technology designed to support efficient power conversion in a compact form factor.

GaN chargers can offer an efficient alternative to traditional charging designs while allowing manufacturers to create smaller, high-power adapters. This makes the BS 25W charger convenient for everyday use at home, in the office or when travelling.

Smart Chip and Multi-Protection

The charger incorporates a Premium Smart Chip for intelligent power management. The integrated charging system is designed to manage power delivery according to the requirements of compatible connected devices.

The listed protection functions include:

• Overcharge protection
• Overcurrent protection
• Overvoltage protection
• Short-circuit protection
• Temperature-related protection

These features are designed to provide an additional layer of protection during normal charging. Users should still follow appropriate electrical safety practices and discontinue use if the charger or cable becomes damaged.

USB-C to Lightning Cable Included

The BS-AC20-L charging set includes a high-speed USB-C to Lightning cable. This makes the package particularly convenient for compatible Lightning devices that support charging through a USB-C power source.

Instead of purchasing a wall adapter and compatible cable separately, this product combines both components into one ready-to-use charging set.

Wide Input Voltage Range

The BS 25W Wall Charger supports a universal input voltage range of 110–240V~ at 50/60Hz, with a maximum input current of 0.6A.

This dual-voltage specification provides flexibility across compatible electrical systems within the stated voltage range. Always ensure the wall outlet and electrical environment are suitable before using the adapter.

Suitable for Everyday Charging

The compact dual-port design makes the charger useful in a variety of situations. It can be placed beside a bed, on an office desk or packed into a travel bag for convenient charging.

The USB-A and USB-C combination also makes it easier to accommodate different charging cables. Compatible smartphones, tablets, handheld gaming devices and other USB-powered electronics can benefit from the appropriate charging output supported by the device and charger.

Product Specifications

Attribute	Specification
Brand / Model	BS / BS-AC20-L
Product Name	BS 25W Wall Charger with USB-C to Lightning Cable (BS-AC20-L) – Fast Charging Adapter
Product Type	Dual-Port Fast Wall Charger
Technology	GaN (Gallium Nitride) & Premium Smart Chip
Maximum Power Output	25W Max
Maximum Total Output Current	3.4A
Input Voltage	110–240V~
Input Frequency	50/60Hz
Maximum Input Current	0.6A
USB-A Technology	QC3.0
USB-A Output	5.0V⎓3.4A, 9.0V⎓2.0A, 12.0V⎓1.5A
USB-C Technology	PD 25W
USB-C Output	5.0V⎓3.4A, 9.0V⎓2.77A, 12.0V⎓2.08A
Combined A+C Output	5.0V⎓3.4A Max
PPS Output	3.3V–5.9V⎓3.0A, 3.3–11.0V⎓1.8A
Included Cable	USB-C to Lightning High-Speed Cable
Certifications	CE, EAC, RoHS
Origin	Made in China

Why Choose the BS 25W Wall Charger?

• 25W maximum Power Delivery output for compatible devices.
• USB-C PD for fast charging compatibility.
• USB-A QC3.0 for compatible Quick Charge devices.
• Dual-port design for flexible charging options.
• GaN technology for efficient power conversion and a compact design.
• Premium smart chip for intelligent power management.
• Multiple built-in protection functions.
• PPS support with the listed variable-voltage profiles.
• Includes a USB-C to Lightning cable.
• 110–240V universal dual-voltage input.
• CE, EAC and RoHS certifications.

Safety and Usage Guidelines

Keep the BS 25W Wall Charger away from children, moisture and damp environments. Avoid exposing the adapter to direct sunlight, excessive heat or other unsuitable conditions.

Make sure the wall plug is fully inserted into the electrical socket before connecting a charging cable. Do not force connectors into ports.

When the charger is not being used, unplug it from the wall outlet. Inspect the adapter and cable regularly, and do not continue using them if there are visible signs of damage.

For the best performance, use the supplied cable or another suitable, compatible charging cable and ensure that the connected device supports the charging protocol being used.

Frequently Asked Questions

What is the BS 25W Wall Charger?

The BS 25W Wall Charger is a dual-port fast charging adapter, model BS-AC20-L, featuring USB-A QC3.0 and USB-C PD 25W outputs. It also includes a USB-C to Lightning cable.

What is the maximum power output?

The charger has a maximum power output of 25W.

Does the charger support USB-C Power Delivery?

Yes. The USB-C port supports Power Delivery up to 25W, with the listed 5V, 9V and 12V output profiles.

Does it support Quick Charge?

Yes. The USB-A port supports QC3.0 with the specified 5V, 9V and 12V output profiles.

Is a cable included?

Yes. The package includes a high-speed USB-C to Lightning cable.

Can I charge two devices at the same time?

Yes. The charger has both USB-A and USB-C ports. When both ports are used simultaneously, the specified combined output is 5.0V⎓3.4A maximum.

What is GaN technology?

GaN stands for Gallium Nitride. It is a semiconductor technology used in modern power electronics that can support efficient power conversion and compact charger designs.

Does the charger support PPS?

Yes. The listed PPS outputs are 3.3V–5.9V⎓3.0A and 3.3V–11.0V⎓1.8A.

What safety protections are included?

The charger is specified with protection against overcharge, overcurrent, overvoltage and short circuits, along with temperature-related protection.

What input voltage does the charger support?

The adapter supports 110–240V~ at 50/60Hz, with a maximum input current of 0.6A.

Is the charger suitable for smartphones and tablets?

Yes, it is designed for compatible smartphones, tablets, handheld consoles and other USB-powered electronics. Actual charging performance depends on device compatibility.

Where is the BS-AC20-L manufactured?

The listed country of origin is China.
